Detailed Product Description
| Image Device: |
1/3-type 960H EXview HAD CCD II |
Sensor Brand: |
SONY |
| Signal System: |
PAL |
Dimensions (W X H X D): |
63 Mm X 57 Mm X 109 Mm |
| Weight: |
165 G |
Horizontal: |
650TV Lines |

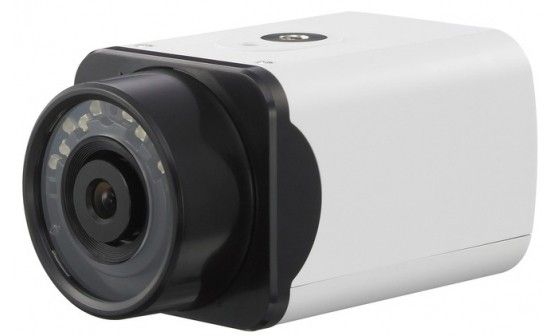

Analog Security Camera 960H , 0.57 Megapixels SONY IR Security Camera CCTV
Feature:
* Capture objects even in the darkest conditions
Built-in infrared illuminators enable and enhance the capture of objects in the dark – even under 0 lx – within 10 metres.
* Clear and detailed images
The SSC-YB511R offers very high resolution (650 horizontal TV lines) image acquisition. A1/3-type "Super HAD CCD II" sensor and Sony's "Effio-E" digital signal processor deliver clear and detailed images.
* Switching automatically into Night mode
The True Day/Night function switches between Day (colour) and Night (black and white) modes to optimise image quality 24/7.
* Automatic Tone Reproduction
Automatic Tone Reproduction compensates for gradation of subjects to an optimum level.
* 2D noise reduction
2D noise reduction ensures clear visibility even in dark environments.
Description:
The SSC-YB511R'svery high resolution (650 horizontal TV lines), infrared illuminators and True Day/Night function make it an ideal camera for monitoring an area that requires enhanced image capture at night.
Built-in infrared illuminators assist in capturing nearby objects in the dark(under 0 lx within 10 metres) with and True Day/Night function automatically switching between day (colour) and night (monochrome) modes depending on lighting levels. Image acquisition is high resolution and high sensitivity, thanks to a 1/3-type "Super HAD CCD II" sensor and "Effio-E" digital signal processor.
Specification:
| Image Sensor |
1/3-type 960H EXview HAD CCD II |
| Number of Effective Pixels |
Approx. 0.57 Megapixels |
| Signal System |
PAL |
| Sync System |
Internal only |
| Minimum Illumination (50 IRE) |
B/W: 0 lx (F1.8) |
| S/N Ratio (Gain 0 dB) |
More than 55 dB |
| Gain |
Auto |
| Shutter Speed |
Auto |
| White Balance |
ATW (2000 K to 10000 K) |
| Lens |
Monofocal type |
| Powered Zoom |
No |
| Powered Focus |
No |
| Horizontal Viewing Angle |
46.5° |
| Vertical Viewing Angle |
34.5° |
| Focal Length |
f = 6 mm |
| F-Number |
F1.8 |
| Minimum Object Distance |
800 mm |
| IR Illuminator |
10 pieces |
| IR Working Distance |
10 m at 50 IRE |
| Day/Night |
True D/N |
| Tone Correction |
ATR-Lite |
| Noise Reduction |
2DNR |
| Vandal Resistant |
No |
| Ingress Protection |
No |
| Analog Video Output |
VBS: 1.0 Vp-p
650 TV lines |
| Power Requirements |
DC 12 V ±10% |
| Power Consumption |
3.2 W max. |
| Operating Temperature |
-10℃ to +50℃
+14°F to +122°F |
| Storage Temperature |
-40℃ to +60℃
-40°F to +140°F |
| Operating Humidity |
20% to 80% |
| Storage Humidity |
20% to 95% |
| Dimensions (W x H x D) *1 |
63 mm x 57 mm x 109 mm
2 1/2 inches x 2 1/4 inches x 4 3/8 inches |
| Mass |
165 g
5.8 oz |
| Safety Regulations |
EN55022 (Class A) + EN50130-4
EN55022 (Class A) + EN55024
AS/NZS CISPR22 (EN55022) Class A
IEC60065
GOST-R IEC60065 compliance |
| Supplied Accessories |
Operating Instructions (1) |
