Detailed Product Description
| Image Sensor: |
1/3-type CMOS |
Effective Pixels: |
Approx. 2M Pixels (16:9) |
| Minimum Illumination: |
15lx (F1.8) |
Optical Zoom: |
10x Optical Zoom, 4x Digital |
| Preset Positions: |
6 |
Signal System: |
NTSC/PAL |
| Minimum Object Distance: |
100M |
|
|

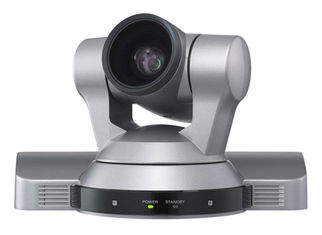

Sony EVI-HD1 PTZ Video Conference Camera 1/3-type , Hd Pan Tilt Zoom Camera
Advantage:
1. The EVI-HD1 HD Color Video Camera employs a 1/3-type HD CMOS image sensor boasting two million effective pixels and can be used in combination with any number of codecs and other systems to produce high-quality, high-resolution images. The EVI-HD1 inherits many outstanding features from the
popular EVI-D100 PTZ camera and couples these with superb HD picture quality.
2. With its wide field of view, built-in 10x optical zoom lens, 16:9 aspect ratio image and high-speed, quiet pan/tilt operation, the EVI-HD1 can cover subjects across wide areas, with minimal disturbance.
3. Combining convenient features such as auto focus/auto exposure, 6-position presets, and external/remote control, the EVI-HD1 camera is ideal for applications such as videoconferencing, distance learning, and corporate training.
Description:
Sony, a leader in developing PTZ cameras and a long standing leader in HD technology, is combining its strengths with the introduction of its first high-definition PTZ camera. Joining the popular EVI family, this unique camera allows you to take your first step towards HD migration with the flexibility to output analog or digital video signals – from standard definition (SD) to full high definition (HD). Conference rooms everywhere are making the transition to HD, and the Sony EVI-HD1 makes this change effortless.
Features:
* Image sensor: 1/3-type CMOS
* Effective pixels: Approx. 2 Megapixels (16:9)
* Signal system: HD 1080/59.94i 1080/50i 1080/29.97p 1080/25p 720/59.94p 720/50p 720/29.97p 720/25p
* Lens: 10x optical Zoom 40x with digital zoom f = 3.4 to 33.9 mm F 1.8 to F 2.1
* Minimum object distance: 100 mm (wide)
* Horizontal viewing angle: 8 degrees (Tele) to 70 degrees (Wide)
* Focus system: Auto / Manual
* Minimum illumination: 15 lx (50 IRE F1.8)
* Exposure control: Auto / Manual / Priority AE / Exposure compensation / Bright
* Shutter speed: 1/2 to 1/10 000 sec.
* Gain: Auto / Manual (-3 to +18 dB)
* White balance: Auto / Indoor / Outdoor / One push auto / Manual
* S/N Ratio: 50 dB
* Pan/Tilt: pan: -100 to +100 deg. (Max. speed 300 deg./sec.)Tilt: -25 to +25 deg. (Max. speed 125 deg./sec.)
* Position preset: 6 positions
* Video output: HD HD-SDI Analog Component (Y/Pb/Pr) SD VBS Y/C
* Power requirements: 12 V DC (10.8 to 13.0 V DC)
* Power consumption: Max. 30 W (at DC 12 V)
* Operating temperature: 0 to 40??C (32 to 104??F)
* Storage temperature: -20 to 60??C (-4 to 140??F)
* Dimensions: 259 (W) x 150 (H) x 169 (D) mm (10 1/4 x 6 x 6 3/4 inches)
* Mass: Approx. 2 kg (4 lb 7 oz)
Applications:
Video conference , office .
SPECIFICATIONS:
| Image Sensor |
1/3-type CMOS |
| Image Sensor (Number of Effective Pixels) |
Approx. 2M pixels (16:9) |
| Signal System |
NTSC, PAL
720p/59.94, 720p/50, 720p/29.97, 720p/25
1080i/59.94, 1080i/50, 1080p/29.97, 1080p/25, |
| Minimum Illumination (50IRE) |
15lx (F1.8) |
| S/N Ratio |
50 dB |
| Gain |
Auto/Manual (-3 dB to +18 dB) |
| Shutter Speed |
1/2 to 1/10,000 sec. |
| Exposure Control |
Auto, Manual, Priority AE, Exposure compensation, Blight |
| White Balance |
Auto, Indoor, Outdoor, One-push auto, Manual |
| Optical Zoom |
10x |
| Digital Zoom |
4x |
| Focusing System |
Auto/Manual |
| Horizontal Viewing Angle |
70 degrees (wide) to 8 degrees (tele) |
| Focal Length |
F1.8 to F2.1
f=-3.4mm (wide) to 33.9mm (tele) |
| Minimum Object Distance |
100mm (wide) |
| Pan/Tilt Angle |
Pan: ±100°, Tilt: ±25° |
| Pan/Tilt Speed (Max.) |
Pan: 300°/sec, Tilt: 125°/sec |
| Preset Position |
6 |
| Auto ICR |
No |
| Wide-D |
No |
| Image Stabilization |
No |
| Image Flip |
No |
| Auto Power Off |
No |
| Night Power Off |
No |
| Power Requirements |
DC 12V (10.8 to 13.0V DC)
Max. 30 W (at DC 12 V) |
| Operating Temperature |
32°F to 104°F
0°C to 40°C |
| Storage Temperature |
-4°F to +140°F
'-20°C to +60°C |
| Dimensions (W x H x D) *[1] |
259 x 150 x 169 mm
10 1/4 x 6 x 6 3/4 inches |
| Mass |
4 lb 7 oz
2 kg |
| Body Color |
Gray |
| Wide Conversion Lens Attachable |
No |
| Mountable Angle |
±15° |
| Ceiling Mount |
No |
| Supplied Accessories |
Operating instruction (1)
IR remote commander unit (1)
AC power cable (1)
AC adaptor (1) |
