Detailed Product Description
| Optical Zoome: |
35x Optical Zoome |
DSP: |
DSP8 |
| Horizontal Resolution: |
540TVL |
Dimensions: |
50*60*89.5mm |
| Weight: |
260G |
Sensor: |
1/4" Progressive Scan Ex-View Colour CCD |
| System: |
VK-S654N/EN , NTSC/PAL |
|
|
Digital Surveillance Hitachi Camera Module VK-S654EN 35x Optical Zoom High-performance
Features:
* Hitachi DSP 8 camera control
* 35X Optical Zoom F1.4 Lens and practical f value 3.4-119mm
* IR Cut Filter Removed for Day/Night Capability
* 0.50 lux sensitvity, 50 IRE, 0.01 lux IR Cut Filter Off
* Composite Video Output, Y/C, YUIV422 8 bit Digital Output
* 1/4" Progressive Scan Ex-View Colour CCD, NTSC/PAL output
* 540 TV Lines of Resolution
* Motion Detection, Motion Tracking, Frame Noise Reduction, Wide
* Dynamic Range
* S/N 50dB
* Privacy Masking 2 Zone, 2-D, 8 Zone 3-D
* Operating Temperature 0-60 degrees C
* Serial Control via TTL
Advantage & Description:
Advanced digital signal processing (DSP) technology ensures outstanding color reproduction and low light performance, capable of capturing details such as facial features,clothing, and automobile colors that can serve as vital evidence. Setting a new standard for imaging quality, night or day, the Hitachi VK-S654N/EN marks another phase in the evolution of high-quality digital surveillance systems
Applications:
* Surveillance - In corporate, medical, learning institutes and other public places, security camera solutions offer peace of mind.
* Traffic Management - Monitoring and responding to ongoing road activity in residential and business areas.
* In Car Video - Hybrid use of a camera used in a vehicle.
* Telepresence - Conference type solutions in business or learning institutions.
* Low Vision Magnifier - Video technology for sight impaired individuals.
SPECIFICATIONS:
| image sensor |
| System |
PAL |
| Image Size |
progressive scan 1/4" CCD(opposite angle :4.5mm) |
| Total Pixels |
470k(795×596) |
| Effective Pixels |
440k(752×582) |
| DSP |
DSP8 |
| horizontal resolution |
54OTVL |
| LENS |
| ZOOM RATIO |

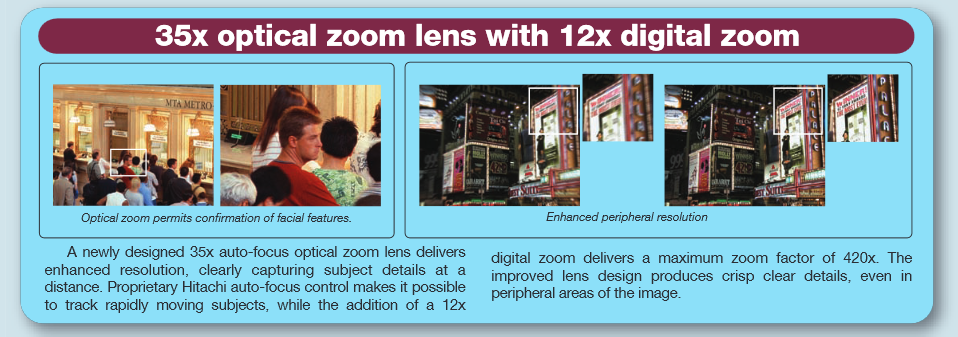

35X optical zoom,12X digital zoom(max.) |
| f value |
3.4*-119mm |
| horizontal view angle |
about 58.2°(W)*- 1.8°(T) |
| F value |
F1.4(W)-F4.2(T) |
| Zoom speed(Manual) (Preset :Track /No Track ) |
4.6s*/6.6s |
| 3.2s/2.0s |
| video focusing |
Auto*/Manual(Far/near) |
| minimum focus |
0.01m(W)*-3m(T) |
| Day/night switch(IR-cut) |
Auto *(Pro.AER+*/AER)/Manual |
| Minimum Illumination |
(condition:F1.4(W),50 IRE) |
| IR-cut On |
1.0 Lx(1/50s) |
| IR-cut Off |
0.01 Lx(1/3s) |
| Iris control |
| Auto * |
Sets the offset |
| Manual |
F1.4-F32(exposure first) |
| shutter speed |
| Auto |
1/50-1/4ks Continuous (Pro.AE/AER) |
| 1/1.5-1/3*-1/4ks(Pro.AE+*/AER+) |
| Manual |
1/0.75-1/30ks(shutter first) |
| AGC control |
| Auto * |
Can set maximum |
| Manaul |
0-30dB(AGC first) |
| Function |
| WB |
Auto */ Manual |

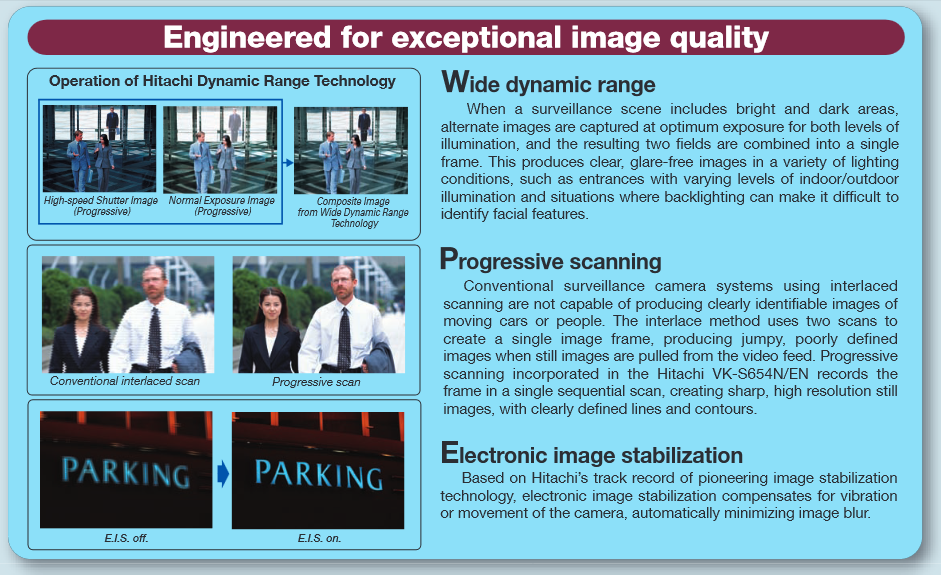

| WDR |
OFF*/ON (Auto * /Manual) |
| BLC |
OFF*/ON(WDR Off) |
| DSS |
Yes(WDR Off) |
| frame output |
OFF*/ON |
| FNR |
OFF*/ON |
| Slow AE |
1×*-254x |
| EIS |
OFF*/ON |
| Image Rollover |
OFF*/ON |
| mirror image |
OFF*/ON |
| Flip Vertical |
OFF*/ON |
| Image Freeze |
OFF*/ON |
| (B & W) |
OFF*/ON |
| Privacy masking(*1) |
OFF*/ON
[2D*:2 area /360°]
[3D:8 area /360°(4 area/screen)] |
| Fixed privacy masking |
OFF*/ON(Optional :12×24 unit) |
| Head view |
OFF*/ON(24 character) |
| Behavioral tracking |
OFF*/ON |
| Activity detection(*1) |
OFF*/ON |
| Multi-user setting |
Yes(max. 111) |
| eliminate dynamic CCD Highlights |
Yes |
| SNR(Brightness ) |
﹥50dB |
| Sync System |
Inside/outside synchronization(50Hz) |
| Command the poison |
EAP |
| Video Output |
| analog output |
CVBS:1.0 Vp-p, Y/C |
| analog output |
YUV422 8bit output(REC656 format) |
| output interface |
| analog output |
9pin/4pin |
| digital output |
30pin/24pin |
| Life |
| Zoom/focus/aperture |
500k loop |
| Infrared optical filter |
50k loop |
| Power (＠25℃) |
| supply voltage |
DC 9-12V |
| supply current ＠9V |
290mA |
| Max. ＠9V |
380mA |
| Power consumption ＠9V |
2.6 W |
| Max. ＠9V |
3.4 W |
| Operating temperature |
0℃-60℃ |
| Storage Temperature |
-20℃-60℃ |
| Weight |
about 250g |
| Size (W×H×D) |
50×60×89.5 mm |
