Detailed Product Description
| Sensor: |
1/2.8-type Exmor Sensor |
Effective Pixels: |
Approximately 3.27 Megapixels |
| Lens: |
3x Vari-focal Lens |
Digital Zoom: |
12x |
| Size: |
50 X 47.6 X 53.4 Mm (w/lens) |
Weight: |
Approx. 83 G |

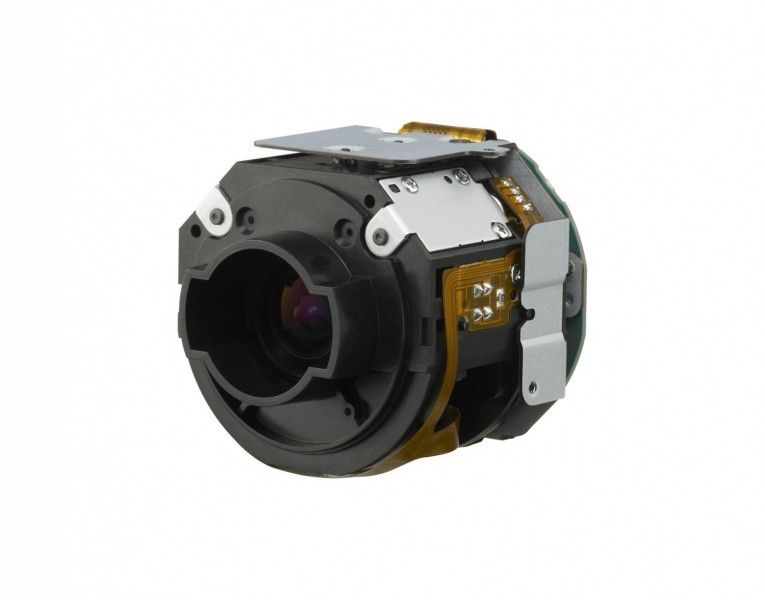

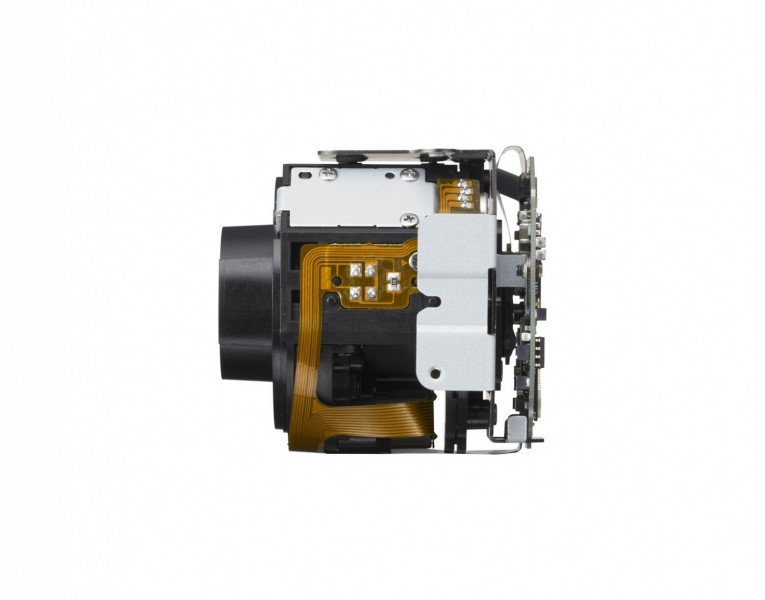

SONY HD Camera Board FCB-SE600 , Mini Zoom Camera Module Colour Camera Block
Description:
Size does matter! Introducing the smallest color camera offered by Sony Visual Imaging Products, the SONY FCB-SE600 Camera . This all-in-one, highly compact camera is ideal for demanding applications such as the military, video surveillance, public transportation, sports, videoconferencing and more. Cleverly designed with a 3x varifocal lens, Exmor™ CMOS sensor, image processor and interface board, this incredibly small camera reduces the size of finished OEM products in a big way.
The SONY FCB-SE600 Camera incorporates a 1/2.8-type Exmor CMOS sensor that achieves Full HD resolution (1080i/60) and superb sensitivity in low light environments. In addition, the camera's 3x varifocal lens features motorized zoom and one-push trigger AF function for easy focal setting. The SONY FCB-SE600 Camera also inherits unique features of Sony's popular FCB Series cameras, such as Wide-D, Privacy Zone Masking, Auto ICR and Noise Reduction.
Feature:
* 1/2.8-type Exmor Full HD CMOS Sensor
* Approximately 3.27 Megapixels
* Motorized 3x zoom lens
* Utra-compact size fits inside 3" mini dome
* One-push AF
* Auto ICR
* Wide-D
* Privacy Zone Masking
* Noise Reduction
* Compact & Lightweight: 50 x 47.6 x 53.4 mm / 83g
Specifications:
| Image sensor |
1/2.8-type Exmor sensor |
| Standard output pixels |
Approximately 3.27 Megapixels |
| Signal System |
1080p/30, 1080p/25, 1080i/60 (30 PsF), 1080i/50 (25 PsF), 720p/60,720p/50, 720p/30, 720p/25 |
| Digital Zoom |
12x (36x with Optical Zoom) |
| Cell size (H x V) |
4.54 x 4.54 μm |
| Angle of View |
H, 1080p mode - Approx. 90° (wide)H, 720p mode - Approx. 60° (wide)
|
| Minimum illumination |
50%, High Sensitivity Mode, typ.
|
0.25 lx (F1.2, ICR off)0.03 lx (F1.2, ICR on) |
| 50%, Normal Mode, typ. |
1.0 lx (F1.2, ICR off)0.1 lx (F1.2, ICR on) |
| Recommended Illumination |
100 lx to 100,000 lx |
| S/N Ratio |
More than 50 dB |
| Gain |
Auto/Manual: -3 dB to +28 dB, +2 dB step/total 16 stepsMax. Gain Limit: +6 dB to +28 dB, +2 dB step/total 12 steps |
| Shutter speed |
1/1 to 1/10,000 s, total 22 steps |
| Sync System |
Internal |
| AE Control |
Auto, Manual, Priority Mode (shutter priority & iris priority), Bright,EV Compensation, Slow AE |
| Backlight Compensation |
Yes |
| White Balance |
Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp(Fix/Auto), One-push, Manual |
| Memory channel |
16 channels for parameter settings |
| Camera Features |
Auto ICR, Wide-D (On/Off/Auto), Noise Reduction (On/Off, On: Level5 to 1), Digital Output. Provacy Zone Masking, Motion Detection,Slow AE Response (Up to approx. 5 minutes), Camera Mode Display,Key Switch Control, 6 Position Preset |
| Picture Effects |
E-Flip, Nega Art, Black & White, Mirror Image, Color Enhancement, Picture Freeze |
| Power requirements |
5V DC to 5.5V DC |
| Power consumption |
Less than 1.2W (zoom/focus inactive) |
| Operating temperature |
-5° C to +60°C |
| Storage temperature |
-20°C to +60°C |
| Operating humidity |
20% to 80% |
| Storage humidity |
20% to 95% |
| Dimensions (W x H x D) |
50 x 47.6 x 53.4 mm (w/lens) |
| Mass |
Approx. 83 g |
Applications:
* Video surveillance
* Pipe Inspection
* Public transportation
* sports
* Medical Applications
* Videoconferencing
* Military
Competitive Advantage:
Size does matter! Introducing the smallest color camera offered by Sony Visual Imaging Products, the FCB-SE600. This all-in-one, highly compact camera is ideal for demanding applications such as the military, video surveillance, public transportation, sports, videoconferencing and more. Cleverly designed with a 3x varifocal lens, Exmor™ CMOS sensor, image processor and interface board, this incredibly small camera reduces the size of finished OEM products in a big way.
